3-D Plots
Here are some examples of surface plots in MATLAB(R).
Contents

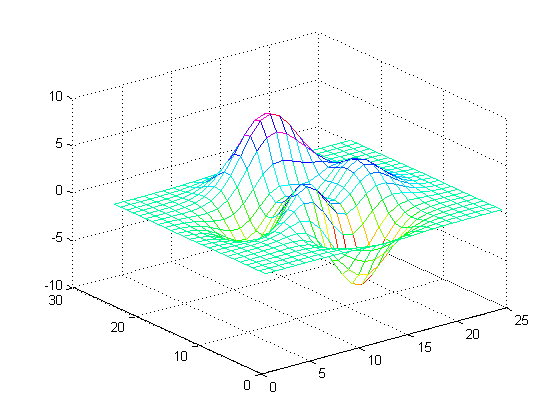

Mesh Plot of Peaks
z=peaks(25);
mesh(z);
colormap(hsv)

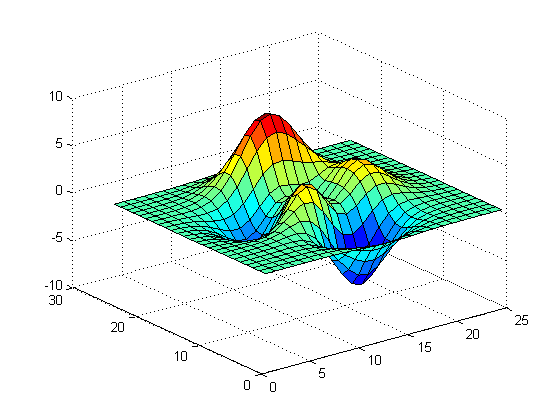

Surface Plot of Peaks
z=peaks(25);
surf(z);
colormap(jet);

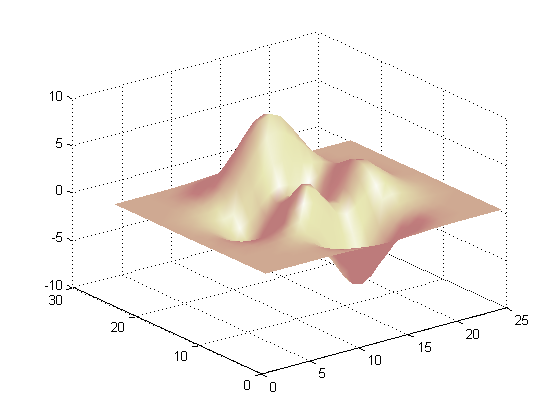

Surface Plot (with Shading) of Peaks
z=peaks(25);
surfl(z);
shading interp;
colormap(pink);
Contour Plot of Peaks
z=peaks(25);
contour(z,16);
colormap(hsv)

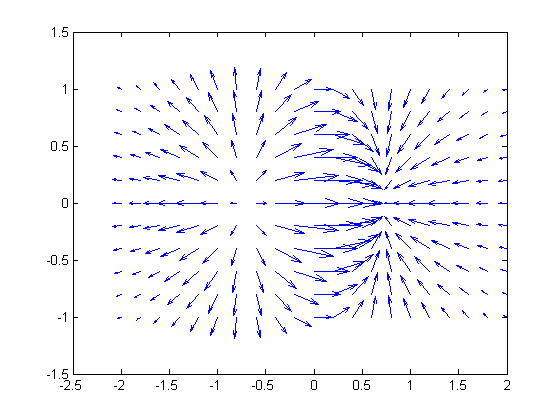

Quiver
x = -2:.2:2;
y = -1:.2:1;
[xx,yy] = meshgrid(x,y);
zz = xx.*exp(-xx.^2-yy.^2);
[px,py] = gradient(zz,.2,.2);
quiver(x,y,px,py,2);
Slice
[x,y,z] = meshgrid(-2:.2:2,-2:.25:2,-2:.16:2);
v = x.*exp(-x.^2-y.^2-z.^2);
xslice = [-1.2,.8,2]; yslice = 2; zslice = [-2,0];
slice(x,y,z,v,xslice,yslice,zslice)
colormap hsv
